Pavement licence & premises licence plans · England

The plan your council asked for. Drawn to scale in 48 hours.

You measure your shopfront with a tape. We turn it into a clear, dimensioned plan that shows the council exactly what goes where.

Get a plan from £120 See a sample plan (PDF)
Will tables fit outside?Plan view · try it
A plan of a shopfront, the pavement and the road, showing the proposed seating area in red and the clear walkway in blue. YOUR PREMISES NEIGHBOUR NEIGHBOUR DOOR ROAD
PASS

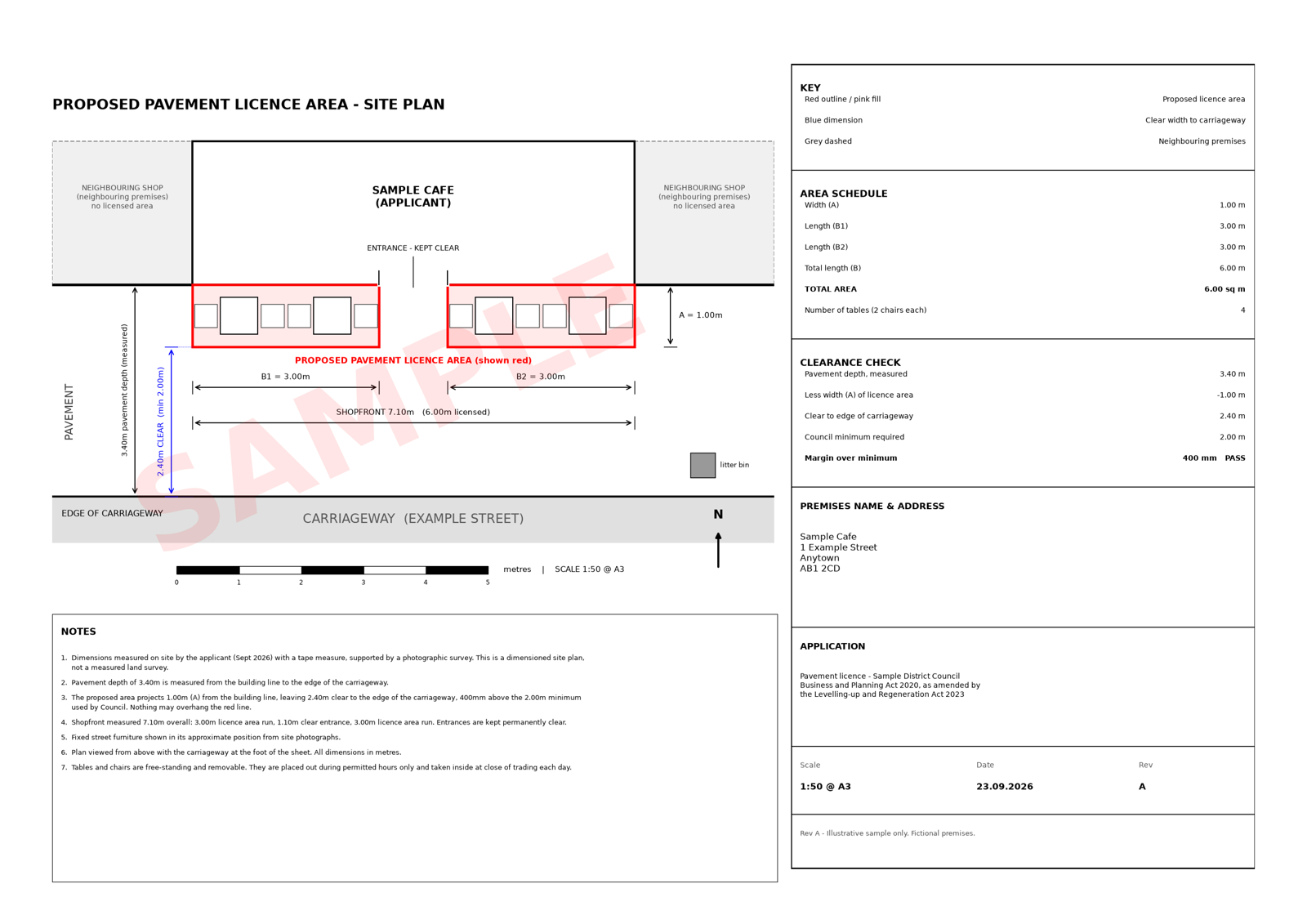

Sample pavement licence plan for a fictional café, showing two seating areas in red, a 2.40 m clear walkway, dimensions, notes and a title block.
Sample plan, fictional café. 1:50 at A3. Open the PDF

Pavement licence plan

Tables, chairs and display stands

Most councils in England ask for a plan with every pavement licence application, including renewals. A licence lasts up to two years, so you will need one again.

  • The licence area, outlined in redWith its depth, lengths and total area in square metres.
  • The clear walkway to the kerbChecked against your council's minimum, so you know before you apply.
  • Doors, neighbours and street furnitureBins, bollards, lamp posts and drains near your frontage.
  • Tables, chairs or standsDrawn where they will actually go, with a north point and scale bar.

Premises licence plan

Selling alcohol or opening late?

A premises licence application needs a plan of the premises, usually at 1:100, showing the layout, exits, escape routes, fire safety equipment, bars and the areas where alcohol is sold and drunk. We draw it from your measurements and a short walk-through video.

  • Everything regulation 23 asks forBoundary, exits, escape routes, stages, stairs, toilets, kitchen and safety equipment, with a key.
  • The licensed area edged redPlus outside drinking areas, music areas and alcohol displays where you have them.
  • For licensing consultants and solicitorsTrade rates and a white-label title block with your firm's name. Email us.
Sample premises licence plan for a fictional bar, showing the area edged red, three exits, green escape routes, a stage, bar counter, toilets, kitchen, fire safety equipment and a key.
Sample plan, fictional bar. 1:100 at A3. Open the PDF

How it works

Everything happens online. You never need to wait in for a surveyor.

You measure

Send photos and a few tape measurements. Our measuring guide shows exactly what to measure.

We draw

Your plan arrives within 48 hours as a PDF and a CAD file, with the clear-width check done.

You apply

Check it, pay, and attach it to your application. If the council asks for changes, we revise it free for 30 days.

What clients say

Reviews from customers on Airtasker, where Licence Plans started. The first is for a pavement licence plan; the others are for other drawing and document work.

★★★★★

“He knows what he is doing, very professional, very helpful. He did what exactly I needed.”
Fouzia A., WindsorCAD drawing for my shop pavement licence from council

★★★★★

“Ramadhan produced a vector image in a number of formats using my own design and completed the work within 24 hours. The printed labels were collected today and are perfect. Highly recommended.”
Jane F.Vector design for self adhesive art labels

★★★★★

“Fantastic service from Ramadhan. Great communication and exactly what we wanted. We hope to work with him again.”
Kate W.Help with formatting a document

★★★★★

“Excellent service. Follows instructions really well and did a fantastic job on my task. Highly recommended.”
Tasneem M.Document and timetable typing

5.0 overall from 11 reviews. Read them all on Airtasker

Prices

Fixed prices. You pay once you have seen the finished plan.

Pavement licence plan

£120
  • Tables and chairs or display stands
  • PDF + DXF, 48 hours
  • Free council revision, 30 days
Order this plan

Premises licence plan

£150
  • 1:100 layout with exits and escape routes
  • Fire safety equipment and bar areas
  • Free council revision, 30 days
Order this plan

HMO licence floor plan

£99per property
  • Room sizes in m², alarms, fire doors
  • Letting agents: 5 plans for £395
  • Free council revision, 30 days
Order this plan
What we don't do. Our plans are drawn from the measurements and photos you send. They are not a measured land survey, a fire risk assessment or planning advice. We are drafting specialists, not architects or surveyors.

Get a plan

Tell us about your premises. We reply within one working day with the measuring guide and a fixed quote.
